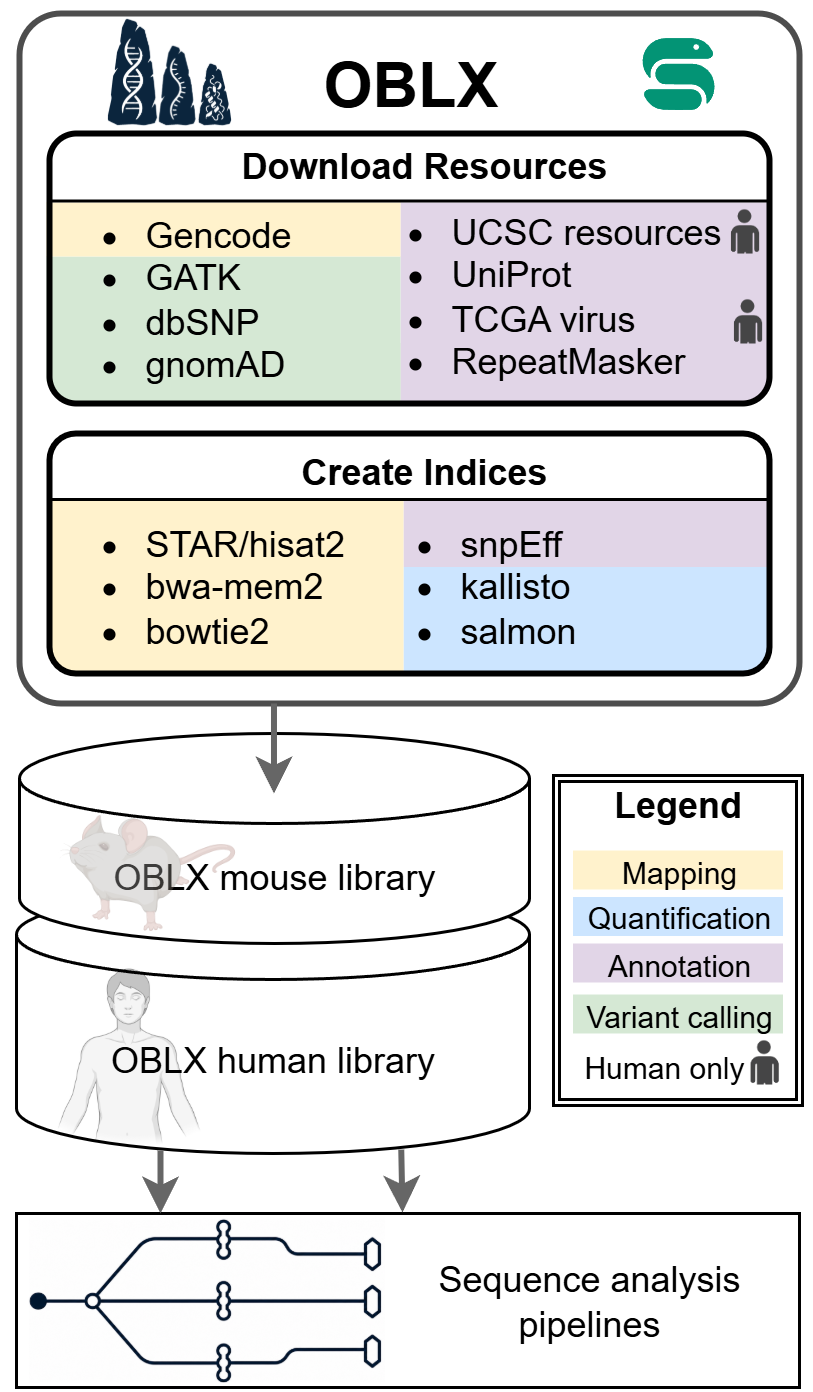

Brief visual description of OBLX, showing which resources are downloaded, which tool indices are created, for which purpose, and if that is for human usage only.

OBLX (/ˌɒbl.ˈɛks/) is a Snakemake (Mölder et al., 2021) pipeline which downloads reference genomes, genome annotations and further resources, and generates from these resources several indices required for various bioinformatics tools. The pipeline consists of two independently executable steps: Download Resources and Build Indices. Download Resources retrieves the resources and prepares the data for bioinformatics index generation. The reference genome and genome annotation are downloaded from GENCODE (for human and mouse) or from Ensembl (for any other organism available in Ensembl). The preferred genome assembly version, GENCODE release and organism can be specified via the config file. Additional resources are retrieved from GATK, UCSC and gnomAD (see Download Resources for details). Build Indices then generates tool-specific indices. The resulting genome library is consistent with respect to chromosome, transcript and gene naming and supports an extensive set of bioinformatics tools, all listed in Supported Tools.

Pre-built indices

Pre-built OBLX libraries for human and mouse are available for download via ftp://easyfuse.tron-mainz.de/oblx.

For each OBLX version that leads to changes in the human or mouse library, an OBLX library is generated. Currently, these versions are available:

OBLX_VERSION BUILD_RELEASE human BUILD_RELEASE mouse
v2.1.0 GRCh38_50 GRCm39_M38
v2.0.0 GRCh38_49 GRCm39_M38
v1.0.0 GRCh38_49 GRCm39_M38

Specify your preferred OBLX library e.g.:

OBLX_VERSION="v1.0.0"
OBLX_ORGANISM="human"
BUILD_RELEASE="GRCh38_49"

Download the respective OBLX library (this downloads the respective files contained in the library, no tar.gz):

wget --recursive --no-host-directories "ftp://easyfuse.tron-mainz.de/oblx/${OBLX_VERSION}/${OBLX_ORGANISM}/${BUILD_RELEASE}"

To verify the files run the following commands (to setup gpg key see https://github.com/TRON-Bioinformatics/security). If any of the checks fail, please refer to this repository. If the error is not documented, feel free to open an issue.

cd "oblx/${OBLX_VERSION}/${OBLX_ORGANISM}"
# download the respective checksum
wget "ftp://easyfuse.tron-mainz.de/oblx/${OBLX_VERSION}/${OBLX_ORGANISM}/${BUILD_RELEASE}.checksum.txt.sig"

# extract the checksum file
gpg --output ${BUILD_RELEASE}.checksum.txt --decrypt ${BUILD_RELEASE}.checksum.txt.sig

# check the downloaded assets
sha256sum -c ${BUILD_RELEASE}.checksum.txt

Installation

Clone the repository:

git clone https://github.com/TRON-Bioinformatics/oblx.git

Install Snakemake (see https://snakemake.readthedocs.io) and pandas (see https://pandas.pydata.org).

Note: We recommend using pixi (https://pixi.prefix.dev/) to replicate the environment used in the tests. Therefore, install pixi and run pixi shell.

Usage

The steps Download Resources and Build Indices are run consecutively when executing (to run them independently, see the respective section):

snakemake -s workflow/Snakefile \
      --directory </path/to/output/directory> \
    --latency-wait 60 \
    --software-deployment-method [conda|apptainer] \
      [--configfile <path/to/config/file>] \
      [--profile </path/to/cluster/profile/>]
  • --directory: Directory to store the results of the workflow.
  • --software-deployment-method: Either conda or apptainer. Container images for apptainer are configured in config/container_config.yaml.
  • --latency-wait: Seconds to wait for files to appear (recommended 60 to account for IO latency of large files).
  • --configfile (optional): Overrides default configuration if provided, e.g. organism or reference genome version. See Configuration.
  • --profile (optional): Snakemake cluster profile, e.g. to submit jobs to an HPC scheduler.

Input

OBLX does not require any user-provided input. You only specify the output directory and, if non-default settings are desired, adapt the configuration.

Output

The output of the pipeline is written to the directory specified with --directory. Descriptions of the downloaded genome resources are documented in Download Resources; descriptions of the generated indices are documented in Build Indices.

Supported bioinformatics tools

See Supported Tools.

Contribution

We welcome contributions! Please see CONTRIBUTING and developer_guide for guidelines.

About

OBLX was originally developed by Luis Kress and Johannes Hausmann at TRON - Translational Oncology at the Medical Center of the Johannes Gutenberg University Mainz gGmbH (non-profit).

Main developers:

Cite OBLX

If you use OBLX, please cite the following publication:

Kress, L., Hausmann, J., Freimuth, J., Schrörs, B., Lang, F., & Ibn-Salem, J. (2026). OBLX: Building standardized reference resources for reproducible bioinformatics data analysis. Frontiers in Bioinformatics, 6, 1910035. https://doi.org/10.3389/fbinf.2026.1910035

References

  • Mölder, F., Jablonski, K. P., Letcher, B., Hall, M. B., Van Dyken, P. C., Tomkins-Tinch, C. H., Sochat, V., Forster, J., Vieira, F. G., Meesters, C., Lee, S., Twardziok, S. O., Kanitz, A., VanCampen, J., Malladi, V., Wilm, A., Holtgrewe, M., Rahmann, S., Nahnsen, S., & Köster, J. (2025). Sustainable data analysis with Snakemake. F1000Research, 10, 33. https://doi.org/10.12688/f1000research.29032.3
  • Figure generated with BioRender icons.
